The Concept Artem Portable Smoke Generator
- Completely portable - no electricity required
- Very high, controllable smoke output
- Convenient & easy Piezo ignition
- Extremely persistent, non toxic smoke (Concept Smoke Oil 135)
- Complete with quality metal carrying case & optional protective barrel guard
- Ideal for external Fire Training, Public Order Training, Large scale external exercises
| General Specification (approx) | |
| Size (cm) | 48 x 42 x 14 |
| Weight (kg) | 3 |
| Power Supply (W) | None required |
| Warm up time from cold (mins) | 20 seconds |
| Duration of Smoke Canister at full output | 6-8 minutes |
| Ratio of Smoke Canister / Gas Canister use | 3/1 |
The Artem Gun is a unique, off power smoke generator ideal for creating large volumes of smoke for applications such as fire training, public order training, indeed any application where complete portability is a requirement.
Using conventional Taymar type gas cartridges as the heating source (available worldwide) and a Concept Artem Smoke Canister, the Artem Gun is incredibly straight forward to use. Simply screw in the canisters, pre-heat the stainless steel coil for a few seconds, and turn on the smoke. It's that easy.
With an output that puts pyrotechnic smoke bombs to shame, complete controllability, and low running costs, the Artem Gun is the ideal solution for external smoke.
Principle of Operation
Concept Smoke Oil stored in disposable, ozone friendly Concept Artem Smoke Canisters, is forced under pressure from an inert propellant into a heat exchanger, where it is vaporised using heat applied by a high efficiency burner. The burner draws gas from standard propane/butane cartridges such as the Taymar 3500. The vapour produced condenses on reaching normal atmosphere and a dense, non toxic white smoke is produced.
Artem Gun Safety
The Concept Artem gun can come complete with a pre-fitted safety barrel guard, which prevents the user coming into direct contact with the hot barrel. The barrel guard can also be supplied separately.
Please note that the propane gas aerosols cannot be sent anywhere outside UK mainland. They are readily available world wide.
We recommend the Artem Gun for outdoor use only.
Want more information, advice or prices? email us: info@conceptsmoke.com
Smoke Machine Accessories
|
Concept Artem Gun (with barrel guard) Product Codes: CEL-ARTEMGUN-BG As described above. The Concept Artem Guns comes as a complete kit, including; the Artem Gun, protective barrel guard, aluminium carry case and operating instructions.
|
|
|
Concept Artem Gun (without barrel guard) Product Codes: CEL-ARTEMGUN As described above. The Concept Artem Guns comes as a complete kit, including; the Artem Gun, aluminium carry case and operating instructions. |
|
|

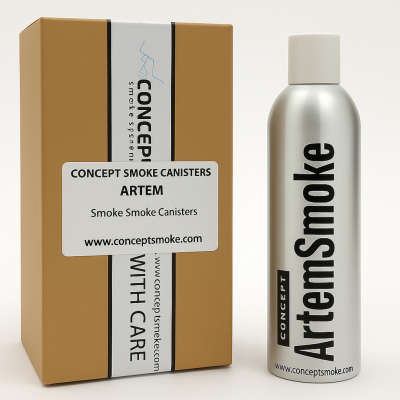

Artem Smoke Canisters Product Codes: ARTEM-AERO-10 The Artem Smoke Canisters come in pack of 10. The aerosols are made from a one-piece aluminium, fully recyclable canister. The contents (Concept Smoke Oil 135) are pressurised with an inert gas. |
|
|

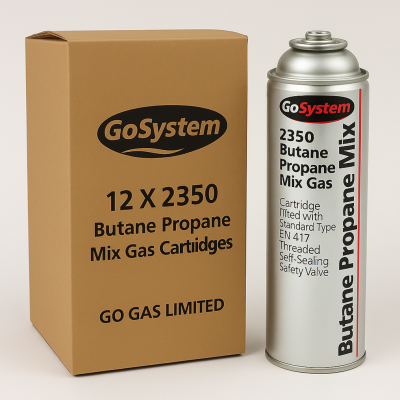

Artem Gas Canisters Product Codes: ARTEM-GAS-1, ARTEM-GAS-12 The Artem Gas Canisters can be purchased individually or in a pack of 12. The Gas canisters are a Butane / Propane mixture. The gas canisters can only be supplied in the UK. |
|
|
Refillable Smoke Canisters Product Codes: CC-REFILL-DIP This canister can be filled with Concept Smoke Oil 135 (see below), it can be pressurised via an in-built Schrader valve and pump / airline. If used with care a single canister can last 20-25 operations. The canister will be supplied with a siphon / dip tube. Refillable smoke canisters can reduce overseas carriage costs due to not being pressurised. |
|
|
Concept Smoke Oil 135 Product Codes: S/OIL135-5 Smoke Oil 135 can be used in the refillable smoke canisters for the Artem Gun. One 5ltr container of Smoke Oil 135 will last approx. 15 operations. |
|
|
High Pressure Shock Pump Product Code: CC-SHOCK For use with the refillable smoke aerosols. Designed to be small, portable and robust. To pressurise a refillable aerosol the pump requires approx. 200 actions to reach 100PSI. |
|
|
High Pressure Stirrup Pump Product Code: CC-STIRRUP For use with the refillable smoke aerosols. Designed to be small, portable and robust. To pressurise a refillable aerosol the pump requires approx. 5 actions to reach 100PSI. |
|
|
Spare Artem Heater Coil Product Code: ARTEM-COIL Spare heater coil for the Artem Gun. Quick and easy to fit. |
|
|
Spare Carry Case for Artem Gun Product Code: ARTEM-CASE Spare brushed aluminium carry case for the Artem Gun. Also has sections to hold up to four spare smoke / gas canisters. |
|
|
US / Canadian adaption kit Product Code: ARTEM-USADAP This adaption kit will allow the Artem Gun to be used in conjunction with US aerosols. Either pre-order your Artem Gun with the adaption kit installed or it can easily be retrofitted. |
|
For a mains powered but fully portable smoke generator...
Try the Concept Colt 4 Turbo!
Demonstration movies
Concept Artem Gun - TutorialConcept Artem Gun 1
Concept Artem Gun 2
Downloads
Concept Artem Gun BrochureConcept Artem Smoke Canister MSDS
Concept Artem Gas Canister MSDS
Concept Artem Gun Price List
