Description
In scenarios where it’s deemed an active fog ingredient (e.g. glycol) isn’t suitable for a cleanroom environment Concept offer an industry leading range of Pure Water Foggers. As the name suggests these systems use only DI / WFI water.
Concept’s ultrasonic water fog generators (AFM series) offer an unmatched potential for water only air flow visualisation in cleanroom environments. Cleanrooms are dynamic areas; people, machinery, and goods are constantly in motion. The AFM Series allows operators of cleanrooms to validate the effectiveness of their cleanrooms in accordance with ISO 14644-3.
Typical Applications
- DI Water only (No fluid/No oil)
- High density
- High purity
- Non-contaminating
The AFM range use of uniquely designed stainless steel piezoelectric modules to generate large amounts of dense fog up to (866 ml/min) however the effect is controllable from 0-100% output. This enables smoke studies and airflow mapping studies for applications ranging from small to large-scale cleanrooms, sterile rooms, medical surgery rooms, ISO suites, and more.
An indication of the typical fog particle size (measured 5 cm above the piezo at a water temperature of 7°C, prior to recombination effects)
| Particle Size Range | Percentage |
|---|---|
| < 0.3 μm | 12% of generated droplets |
| 0.3 μm – 0.5 μm | 36% |
| 0.5 μm – 1.0 μm | 24% |
| 1.0 μm – 5.0 μm | |
| 5.0 μm | 8% |
Specifications

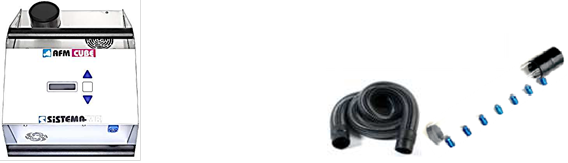

| AFM40-DUAL | AFM35-NEO | AFM24-NEO | AFM CUBE |
|---|---|---|---|
 |
 |
 |
 |
| Key Features: 40 stainless-steel high-performance transducers Twin fog outlet ports AISI 316L stainless steel tank and housing Two fog rakes (Ø 60 x 650 mm) with outlet direction nozzles Two 5 m flexible tubes with end tips (Ø 80 mm)Performance Specifications: Maximum cycle time with one filling: 62 minutes (tank refill on the fly) Generated fog volume: 6.4 m³/min (226 cft/min) Fog density per minute: 866 ml Total fog volume per 60-minute cycle: 360 m³ Visible fog distance: 7 to 10 meters Fog type: High volume of dense, white, pure fogDimensions & Weight: 60 x 32 x 29 cm 19.4 kg |
Key Features: 35 stainless-steel high-performance transducers Single fog outlet port AISI 316L stainless steel tank and housing One fog rake (Ø 60 x 650 mm) with outlet direction nozzles One 5 m flexible tube with end tips (Ø 80 mm)Performance Specifications: Maximum cycle time with one filling: 72 minutes (tank refill on the fly) Generated fog volume: 5 m³/min (177 cft/min) Fog density per minute: 791 ml Total fog volume per 60-minute cycle: 300 m³ Visible fog distance: 7 to 10 meters Fog type: High volume of dense, white, pure fogDimensions & Weight: 57 x 32 x 29 cm 18.5 kg |
Key Features: 24 stainless-steel high-performance transducers Single fog outlet port AISI 316L stainless steel tank and housing One fog rake (Ø 60 x 650 mm) with outlet direction nozzles One 3 m flexible tube with end tips (Ø 80 mm)Performance Specifications: Maximum cycle time with one filling: 94 minutes (tank refill on the fly) Generated fog volume: 3.5 m³/min (123.6 cft/min) Fog density per minute: 553.7 ml Total fog volume per 60-minute cycle: 210 m³ Visible fog distance: 4 to 6 meters Fog type: High volume of dense, white, pure fog Dimensions & Weight: 57 x 32 x 29 cm 17 kg |
Key Features: 20 stainless-steel high-performance transducers Single fog outlet port AISI 316L stainless steel tank and housing One fog rake (Ø 60 x 650 mm) with outlet direction nozzles One 3 m flexible tube with end tips (Ø 60 mm)Performance Specifications: Maximum cycle time with one filling: 46 minutes (tank refill on the fly) Generated fog volume: 2.6 m³/min (92 cft/min) Fog density per minute: 402 ml Total fog volume per 60-minute cycle: 142 m³ Visible fog distance: 4 to 6 meters Fog type: High volume of dense, white, pure fogDimensions & Weight: 35 x 32 x 29 cm 12.4 kg |
