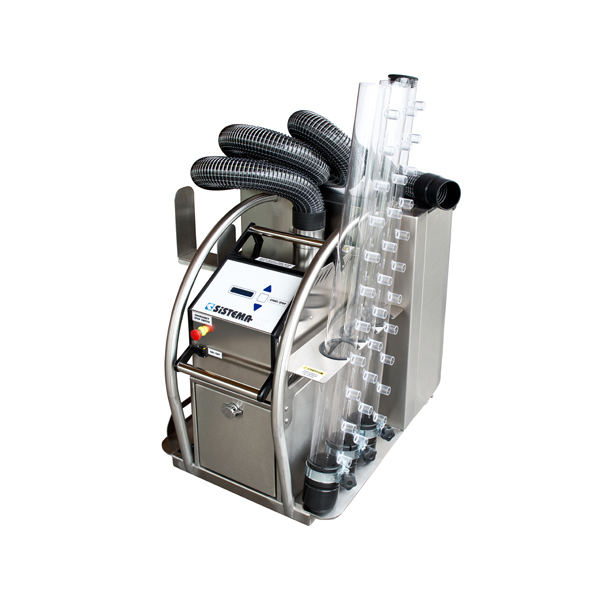

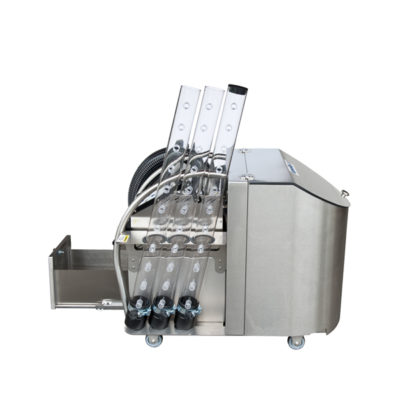

AFM Apollo Range

In scenarios where it’s deemed an active fog ingredient (e.g. glycol) isn’t suitable for a cleanroom environment Concept offer an industry leading range of LN2 Foggers.  These systems use a combination of DI / WFI water and Liquid Nitrogren to produce fog.

Concept’s LN2 water fog generator (AFM Apollo series) provides a huge volume of high-purity fog with a dry character and pure white density.  Cleanrooms are dynamic areas; people, machinery, and goods are constantly in motion.  The AFM Apollo Series allows operators of cleanrooms to validate the effectiveness of their cleanrooms in accordance with ISO 14644-3.

The AFM Apollo range use of uniquely designed stainless steel piezoelectric modules and LN2 to generate large amounts of dense fog up to (866 ml/min) however the effect is controllable from 0-100% output. This enables smoke studies and airflow mapping studies for applications ranging from small to large-scale cleanrooms, sterile rooms, medical surgery rooms, ISO suites, and more.

Typical Applications
  • Airflow recovery tests guided by ISO 14644-3 Annex B12
  • Airflow visualization tests guided by ISO 14644-3 Annex B7
  • USP 797 in-situ airflow analysis and USP 800 compound pharmacy airflow tests
  • Airflow tests for NSF 49 and bio-safety cabinets
  • Airflow requirements using semiconductor clean room guidelines and guided by Federal Standard 209E
  • Containment transport studies on process tools
  • Optimization of equipment locations
  • Tracking routes of air infiltration into cleanrooms
  • Pressure balancing (rooms and spaces)
  • Operator training
AFM Apollo Range Brochure
SKU: AFM-APO-32 Categories: Pure Water Fogger, Smoke Generators Tag: AFM
  • Description

Description

In scenarios where it’s deemed an active fog ingredient (e.g. glycol) isn’t suitable for a cleanroom environment Concept offer an industry leading range of LN2 Foggers.  These systems use a combination of DI / WFI water and Liquid Nitrogren to produce fog.

Concept’s LN2 water fog generator (AFM Apollo series) provides a huge volume of high-purity fog with a dry character and pure white density.  Cleanrooms are dynamic areas; people, machinery, and goods are constantly in motion.  The AFM Apollo Series allows operators of cleanrooms to validate the effectiveness of their cleanrooms in accordance with ISO 14644-3.

The AFM Apollo range use of uniquely designed stainless steel piezoelectric modules and LN2 to generate large amounts of dense fog up to (866 ml/min) however the effect is controllable from 0-100% output. This enables smoke studies and airflow mapping studies for applications ranging from small to large-scale cleanrooms, sterile rooms, medical surgery rooms, ISO suites, and more.

Typical Applications
  • Airflow recovery tests guided by ISO 14644-3 Annex B12
  • Airflow visualization tests guided by ISO 14644-3 Annex B7
  • USP 797 in-situ airflow analysis and USP 800 compound pharmacy airflow tests
  • Airflow tests for NSF 49 and bio-safety cabinets
  • Airflow requirements using semiconductor clean room guidelines and guided by Federal Standard 209E
  • Containment transport studies on process tools
  • Optimization of equipment locations
  • Tracking routes of air infiltration into cleanrooms
  • Pressure balancing (rooms and spaces)
  • Operator training
Specifications
AP35-3 (LN2) AP100-3 (LN2)

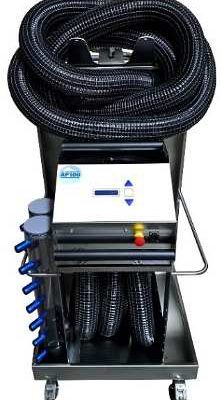

Key Features:

  • Single (optional double) Ø 80 mm fog outlet port

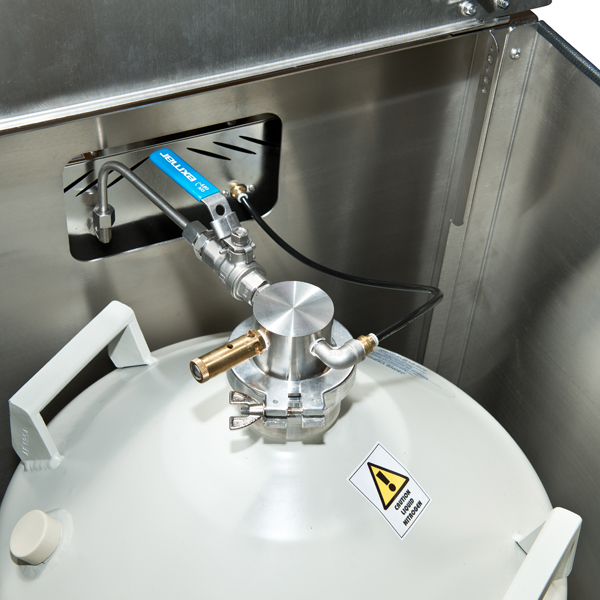

  • 9 L WFI-water tank and 35 L LN2 double-wall dewar
  • Dual heating system with 2 built-in heating coils
  • Control unit, water tank, and dewar made of stainless steel
  • Stainless steel carriage with 4 castors and protective transport frame (semi-circular demountable housing)
  • One fog rake (Ø 80 x 650 mm) with outlet direction nozzles
  • One 5 m flexible tube with end tips (Ø 80 mm)

Performance Specifications:

  • Maximum cycle time with one filling: 47 minutes (refill water tank and exchange LN2 dewar on the fly)
  • Generated fog volume: 8.2 m³/min (290 cft/min)
  • Fog density per minute: 866 ml
  • Fog characteristics: Extremely dense and paper-white fog
  • Total fog volume per 60-minute cycle: 492 m³
  • Visible fog distance: 7 to 10 meters
  • Fog type: High volume of dense, white, pure fog

Additional Features:

  • Optional remote control
  • Pressure build-up controller and pressure reduction controller
  • Fill level control for water tank and nitrogen dewar
  • Pressureless system operating at only 0.3 bar (43.5 PSI)

Dimensions & Weight:

  • 121 x 59 x 88 cm (47.6 x 23.2 x 35 in)

Power Supply:

  • 100-240V, 47/63 Hz

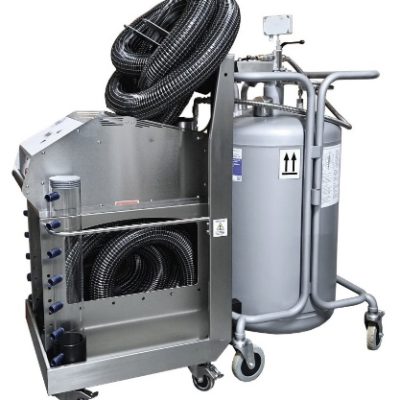

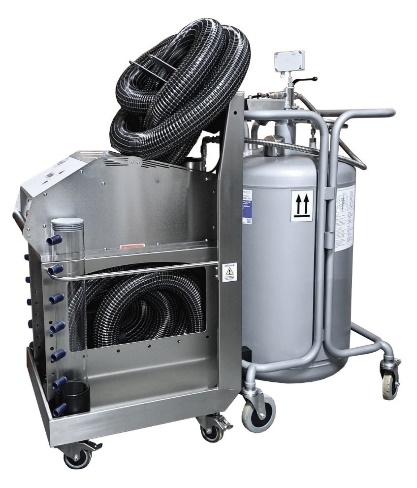

Key Features:

  • Double Ø 80 mm fog outlet ports
  • 9 L WFI-water tank and 100 L LN2 double-wall dewar
  • Dual heating system with 2 built-in heating coils
  • Stainless steel construction for the control unit, water tank, and dewar
  • Decoupled sections for the control unit and dewar, each equipped with 4 castors (two movable and two fixed), allowing independent movement
  • Two fog rakes (Ø 80 x 650 mm) with outlet direction nozzles
  • Two 5 m flexible tubes with end tips (Ø 80 mm)

Performance Specifications:

  • Maximum cycle time with one filling: 90 minutes (refill water tank and exchange LN2 dewar on the fly)
  • Generated fog volume: 14 m³/min (495 cft/min)
  • Fog density per minute: 866 ml
  • Fog characteristics: Extremely dense and paper-white fog
  • Total fog volume per 60-minute cycle: 840 m³
  • Visible fog distance: 10 to 14 meters
  • Fog type: High volume of dense, white, pure fog

Additional Features:

  • Optional remote control
  • Pressure build-up controller and pressure reduction controller
  • Vacuum seal to minimize LN2 loss when not in operation
  • Fill level control for water tank and nitrogen dewar
  • Pressureless system operating at only 0.3 bar (43.5 PSI)
  • Nitrogen filling hose with phase separation

Dimensions & Weight:

  • 121 x 59 x 127 cm (47.6 x 23.2 x 50 in)

Power Supply:

  • 100-240V, 47/63 Hz

Consumables & Accessories

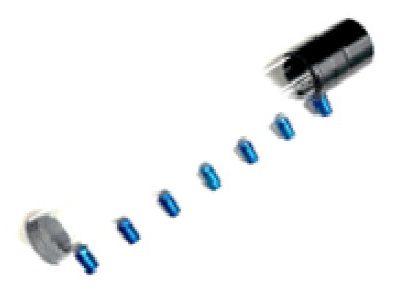

  • Fog Rakes

    Read more

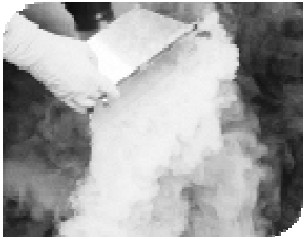

  • Broad & Flat Nozzles

    Read more

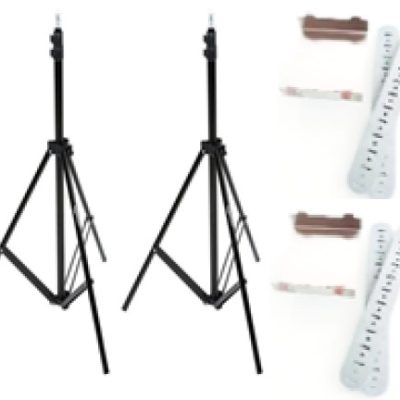

  • Tripods

    Read more

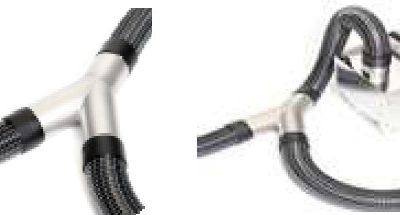

  • Splitters

    Read more
  • Flexible Tubes

    Read more

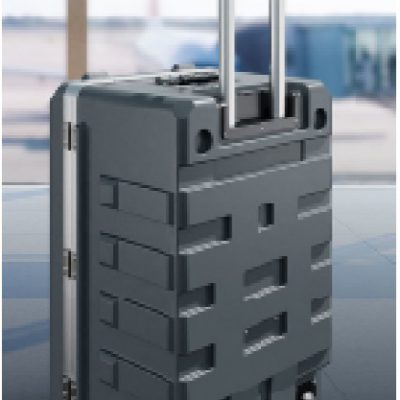

  • Carry Case

    Read more
  • Throttles

    Read more
  • Radio Remotes

    Read more
  • Reducers

    Read more

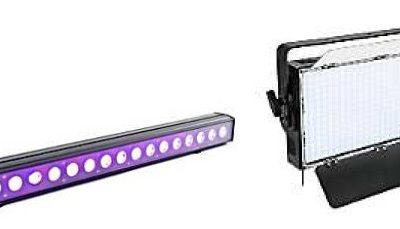

  • LED Fog Enhancers

    Read more
  • Connectors

    Read more

Related products

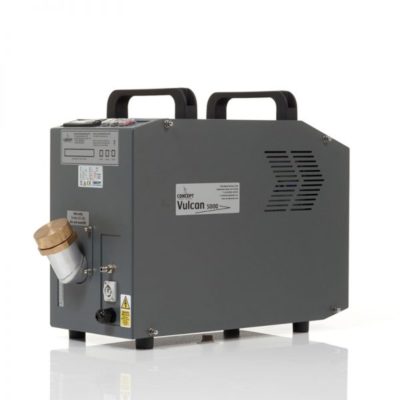

  • VC Aero 1300 & 5000
