Concept Smoke Systems > Products > Security Systems > Vehicle / CIT security > CB2

Products

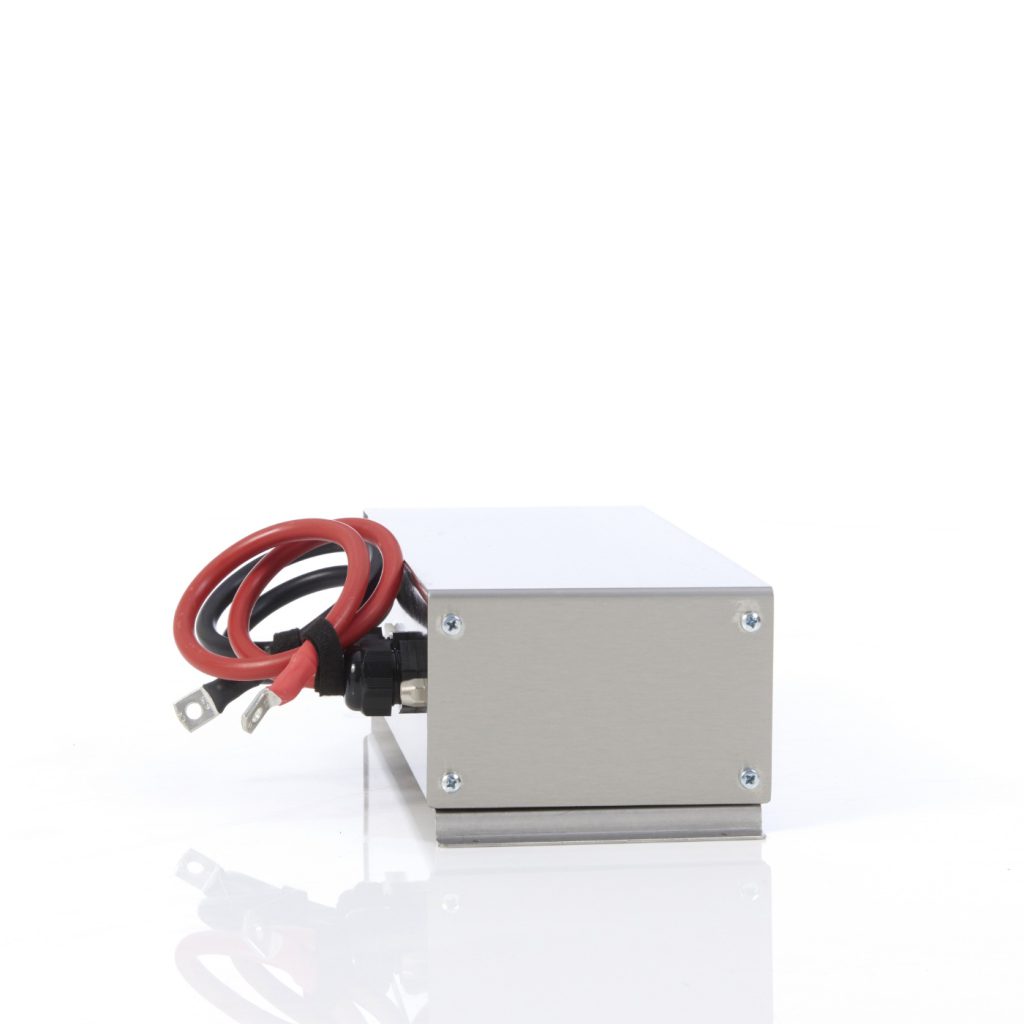

CB2

The CB2 is a powerful battery operated smoke generator.  It’s controlled by an advanced microprocessor, precisely measuring and heating a vaporiser coil and speed adjusting a high performance pump.  As with most smoke generators the CB2 operates on the vaporiser principle, i.e. a glycol based fluid is evaporated and condenses into fog when leaving the fog nozzle.  However, the CB2 fogger only heats the vaporiser coil when smoke is needed, when disarmed it draws no current.  The unit draws 130 – 135amps from a 24vDC power supply but only whilst producing smoke.  The output of the unit is comparable to 9 x CB1’s.

Key points:
  • Instant, safe smoke on demand
  • Easy to install
  • No warm up time
  • Impressive smoke output
  • Dense, persistent smoke
  • Compact design
  • Wall or ceiling mountable (with optional bracket)
  • Simple operation
Category: Vehicle / CIT security
  • Description

Description

Concept’s CB2 is a robust powerful battery powered security smoke system.  It operates from any suitably rated 24v battery capable of high discharge.  The CB2 is capable of producing large amounts of safe, controllable smoke on demand in areas where no mains power is available.

The CB2 operates from an external 24vDC battery of suitable capacity, or from a mains supply using the optional mains adaptor.

Each CB2 is supplied complete with:
  • CB2 fogger with +ve / -ve tails (24vDC)
  • 500ml Smoke Fluid
  • Fluid tube
  • Control lead for arm / disarm, fog start / fog stop
Optional items include:
  • Side Blower
  • Wall / ceiling mount
  • Smoke Fluid
